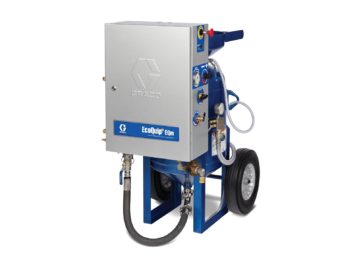

Graco Ecoquip EQc, 2 cuft Pot

$11,000.00

This affordable option in abrasive blasting is not only easy to use, but portable enough to take from one job to another. In addition, Graco’s vapor abrasive blast equipment reduces dust by up to 92% less than traditional dry blasting and uses very little water, making containment and cleanup of debris simple and less messy than power washers.

Whether you plan to remove graffiti and paint, or clean and prep a surface, it’s time to consider an alternative to your power washer, chemical cleaners or hand tools  and use a machine that gets the job done quickly and effectively.

SKU: 249025 Category:
Manufacturer Part Number: 278860

Description

This affordable option in abrasive blasting is not only easy to use, but portable enough to take from one job to another. In addition, Graco’s vapor abrasive blast equipment reduces dust by up to 92% less than traditional dry blasting and uses very little water, making containment and cleanup of debris simple and less messy than power washers.

Whether you plan to remove graffiti and paint, or clean and prep a surface, it’s time to consider an alternative to your power washer, chemical cleaners or hand tools  and use a machine that gets the job done quickly and effectively.

  • Benefits of EQp:
    • Portable cart with lift handles – weighs only 220 lb (99.8 kg) empty
    • Up to 92% less dust than traditional dry blasting
    • Low water usage, less mess – Only uses 1/2 to 1 qt./min. of water
    • Works with coarse, fine or non-destructive media
    • Fast removal rates compared to other cleaning methods – Blast pressures up 150 psi (10 bar)
    • Blasts for up to 90 minutes between refills and holds approximately (4) 55-pound bags of media

Technical Specifications

Abrasive Capacity (lb) 220
Air Inlet Size (in) 3/4
Air Inlet Thread Type NPT
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Mobile
Control Type Pneumatic
Dry Weight (lb) 220
Enclosure Material Coated
Frame Type Portable Frame
Includes Bare System
Maximum Blast Pressure (psi) 150
Maximum Compressed Air (CFM) 300
Maximum Operating Temperature (°F) 110
Maximum Working Pressure (MPa) 1.3
Maximum Working Pressure (psi) 185
Minimum Operating Temperature (°F) 35
Package Type Bare Package
Pot Capacity (ft³) 2
Pot Capacity (gal) 15.1
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 70-250
Sound Power Level (dB(A)) 113.2
Sound Pressure Level (dB(A)) 107.2
Standards Met ATEX Approved, CE
Type Abrasive Blast System
Unit Type Portable Entry Level Unit
Wet Weight (lb) 500

Additional information

Weight 370 lbs
Dimensions 39 × 31 × 52 in
